HD 2MP / 1080P PTZ IP Auto Tracking Camera
Support 360 Degree Automatic Scanning; Support Two Points Between Cruise
H.264/H.265 compression algorithm, save the network bandwidth and hard disk storage space, aspect ratio of 16:9 and 4:3 adjust at will; h. 264 main profile level and M - JPEG video streaming can be output at full frame speed. support for dynamic coding parameters adjustment
Zoom and automatic focusing
With 20 x optical zoom Camera, more than 20 times autofocus function, not only can provide an ideal field of vision, but also can realize perfectautomatic focus
Double stream free switch
Support the double stream, choose the main stream or sub stream according to different application.
Supported protocols and Mobile client
Support TCP/IP,PPPoE,DHCP,UDP,MCAST,FTP,SNMP,Onvif,CGI, Supported Android and Apple Mobile access
Support the local and network linkage signal; Provide area, mobile sensitivity detection alarm, regional block alarm
Auto heating&cooling system
The camera internal installed automatic heating system, in the cold winter, heating system automatically open, the camera can work normally. On summer , cooling system automatically open,better camera work, no matter where you are, Russia or Africa, this is your best choice.
Stepless speed changes, auto zoom/speed matching
Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 360o/S (high speed IR speed dome)
Pan 0.5o~35o, Tilt 0.5o~35o, Preset:35o/s (for Vari-speed IR dome)
Auto object track with zoom in/out and motion detection (Auto Track Model)
Timing actions for 7 days of programmable schedule
Built-in Semi-conductor heater & digital temperature sensor
PWM cooling fan vari-speed temperature control
Reserved network interface and space for network module
Pan Tilt accuracy +/- 0.1o, 256preset positions
8 cruising tracks, each cruising track has 32 presets
4 pattern tours,10 Mins memory, 500 programmable instructions
Multi-Protocol through RS485 or coaxial cable.
8 auto scan with use-defined left and right boundaries and settable scan speed
8 Privacy Zones with defined English camera title
Auto Compatible PELCO_P, PELCO_D compatible
Guard Location: the dome will rotate back to preset position after a period of vacant time
Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions
Soft Address Function: the use can set up the dome address without uninstall the dome
1. Adopt Hiksion high performance 1/2.7" 2.0MP CMOS
2. Powerful 30x optical zoom and 12x digital zoom
3. IR video analysis technology, 30000 hours IR life.
4. Quickly Installation Structure
5. IP 66 all-environments protection
6. .ONVIF2.0 protocol to bring the convenience for the back end device and platform software access

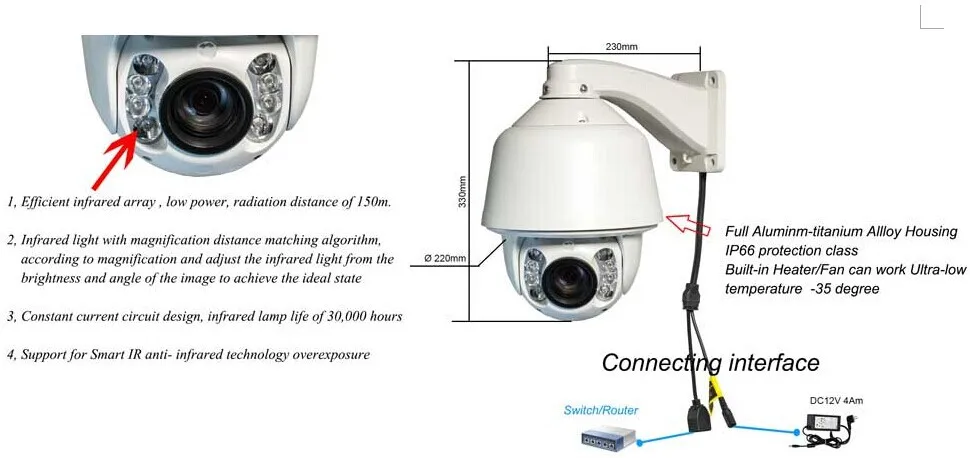

7. IR array LED , night vision distance up to 150m
8. Auto Tracking function
9. Waterproof, Windshield Wiper
Image Sensor SONY Exmor CMOS
Effective Pixels 2Megapixel
Min. Object Distance 10mm(wide) ~ 1000mm(Tele)
Mini. Illumination 0.05 lx (F1.6,50IRE, ICR O ), 0.01lx (F1.6,50IRE, ICR On)
Electronic Shutter 1/1-1/10000s
White Balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, One-push, Manual
Day/Night Auto(ICR) / Color / B/W
S/N Ratio > 50 dB
Video Output BNC(1.0Vp-p / 75 ), PAL / NTSC
Image Resolution 1080P(1920×1080)
Main Stream PAL: 3M(1~15fps), 1080P/720P(1~25fps);NTSC: 3M(1~15fps), 1080P/720P(1~30fps)
Extra Stream PAL: D1(1~25fps);NTSC: D1(1~30fps)
Bit Rate 64K~8Mbps
Audio Compression G.711/ADPCM/G.726/ARM
Audio Mode Off /Audio input/Audio output
IR Distance 150M
Auto Tracking Yes
Pan/Tilt Range Horizontal: 0°~350°endless, Vertical: -10°~90° auto Flip
Manual Control Speed 0.01°-350°/s
Preset Speed 350°/s
PTZ Mode 8 auto scan, 8 tour, 4 pattern
Info Display Time, Location, Dome title, Dome coordinates, Temperature, Alarm, and etc.
Idle Motion Activate preset/scan/tour/ patter if there is no command in the speci ed period
Time Task Auto activation of Preset/Scan/Tour/ Pattern by preset-time
Protocol HS, PELCO-P,PELCO-D
Network Functions TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPOE/DDNS/NFS/RTSP
Max Remote Users 128
Operating System Embedded Linux
Resource Simultaneous remote monitoring, remote operation & local recording
Remote Operation Monitor, PTZ control, Voice Intercom, System setting, Playback, File download, Log information, Maintenance & Upgrade
User Interface WEB
Power Supply DC12V
Power Consumption 50W(Max)
Working Temperature Outdoor:(-35 °C ~+60 °C )
Working Humidity 0~95%(No condensation)
Protection Level IP66
Why do you choose us?
Because our camera has the following special advantages, dear friends believe that you will like it. Our camera is a cute guy.
*1. Unique shape design. The 5-inch white ball machine looks very noble and beautiful. Every time you see it, it makes you feel very comfortable and defends your home like a loyal guard.

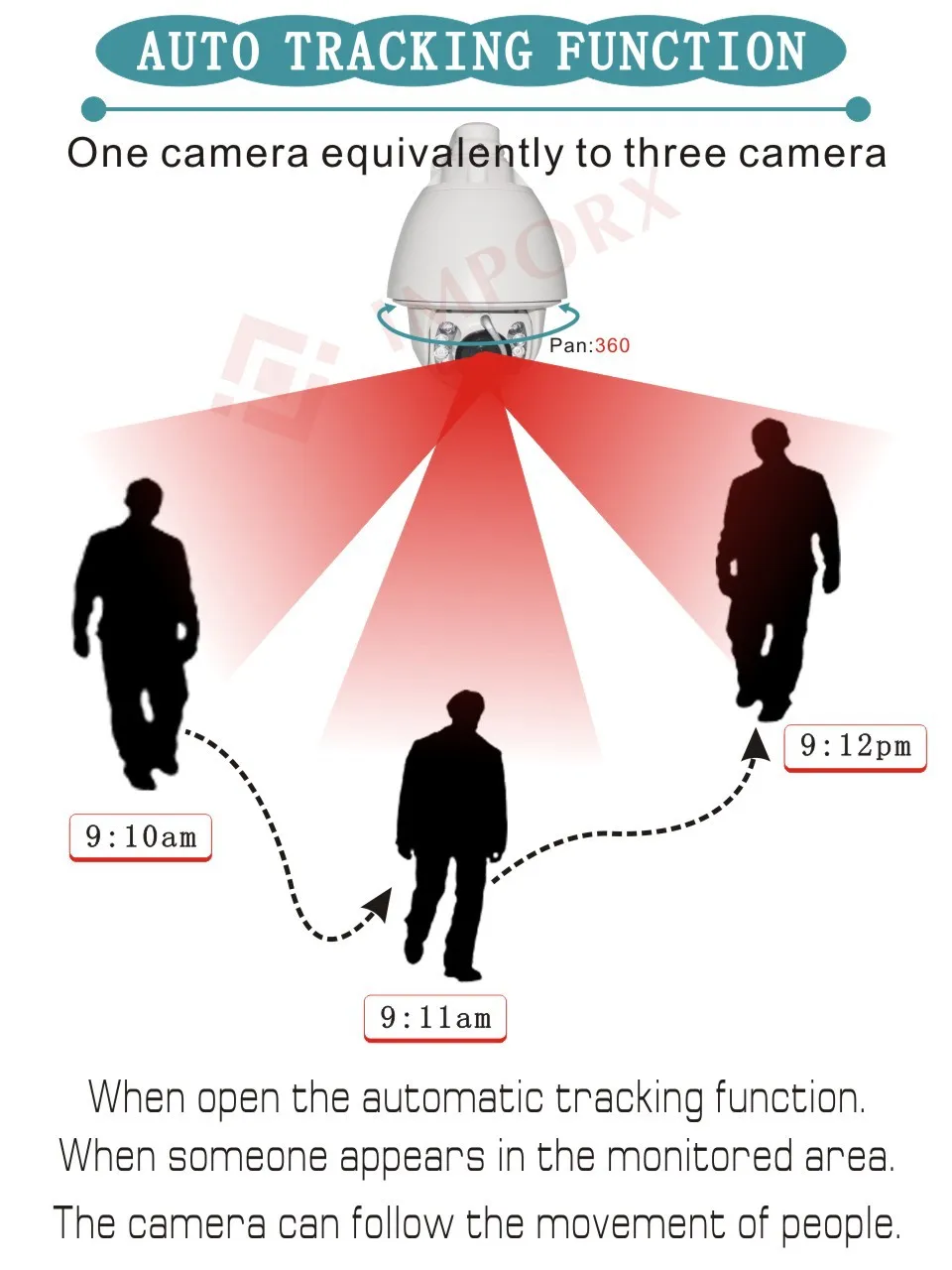

*2. Automatic tracking function. Each moving individual can be automatically monitored to record everything that is happening around.
*3. HD 1080P 2MP 20x zoom, the picture quality is very clear, even a long distance can give you an immersive feeling, let you see anything you want to see in the range.

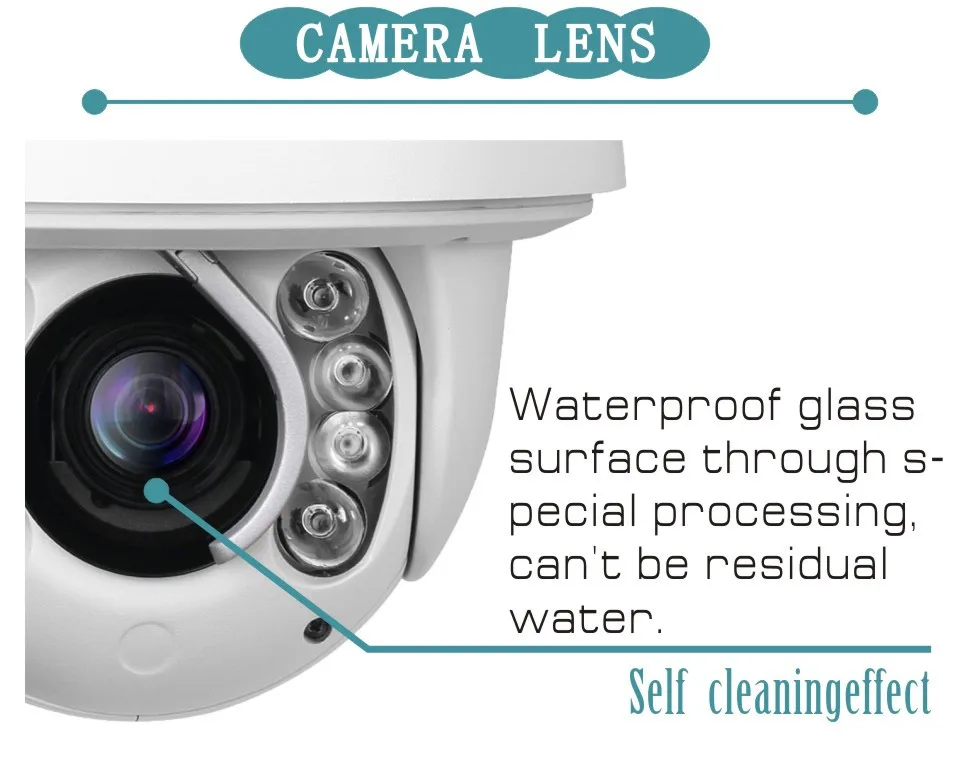

*4. With a wiper function. You can use the wiper option on the software to remove dust and stains from the lens, which is simple and convenient.
*5. Automatic cooling and automatic heating. When the temperature exceeds 45 degrees, the fan is turned on. When the temperature is below 0 degrees, it is automatically heated. The normal operating temperature is 20 degrees. This greatly enhances the life of the camera and is ideal for Nordic countries and some cold countries and regions, the Middle East and countries and regions located near the equator.
*6. Auto cruise function. The camera can automatically patrol the surrounding environment according to the trajectory you set.
*7.SD card storage function. Support SD card storage, computer or NVR is stolen or destroyed, we can still retain evidence.
*8.Defogging function. It is easy to fog on the camera lens in winter, and it is easy to clean the fog on the lens by turning on the defogging mode.

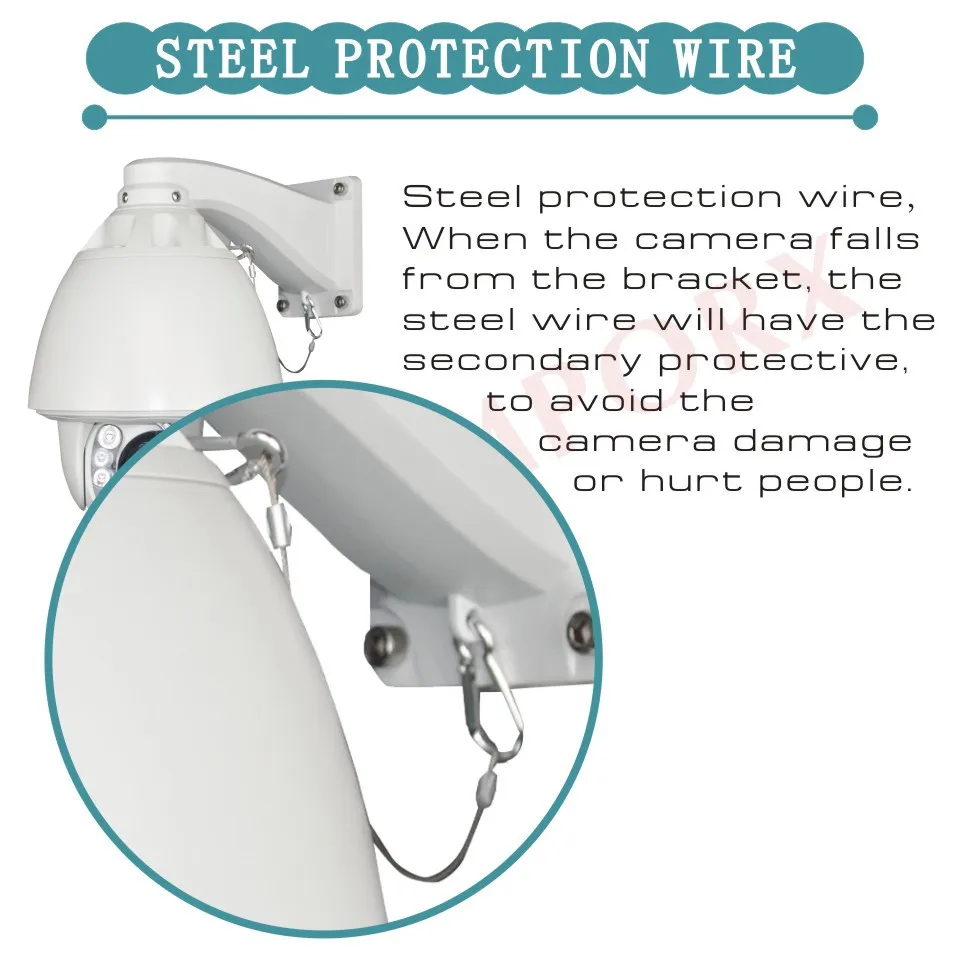

*9. With Safety sling. Any sudden situation causes the camera to fall off, nor does it cause the camera to fall to the ground, hurting pedestrians or vehicles.

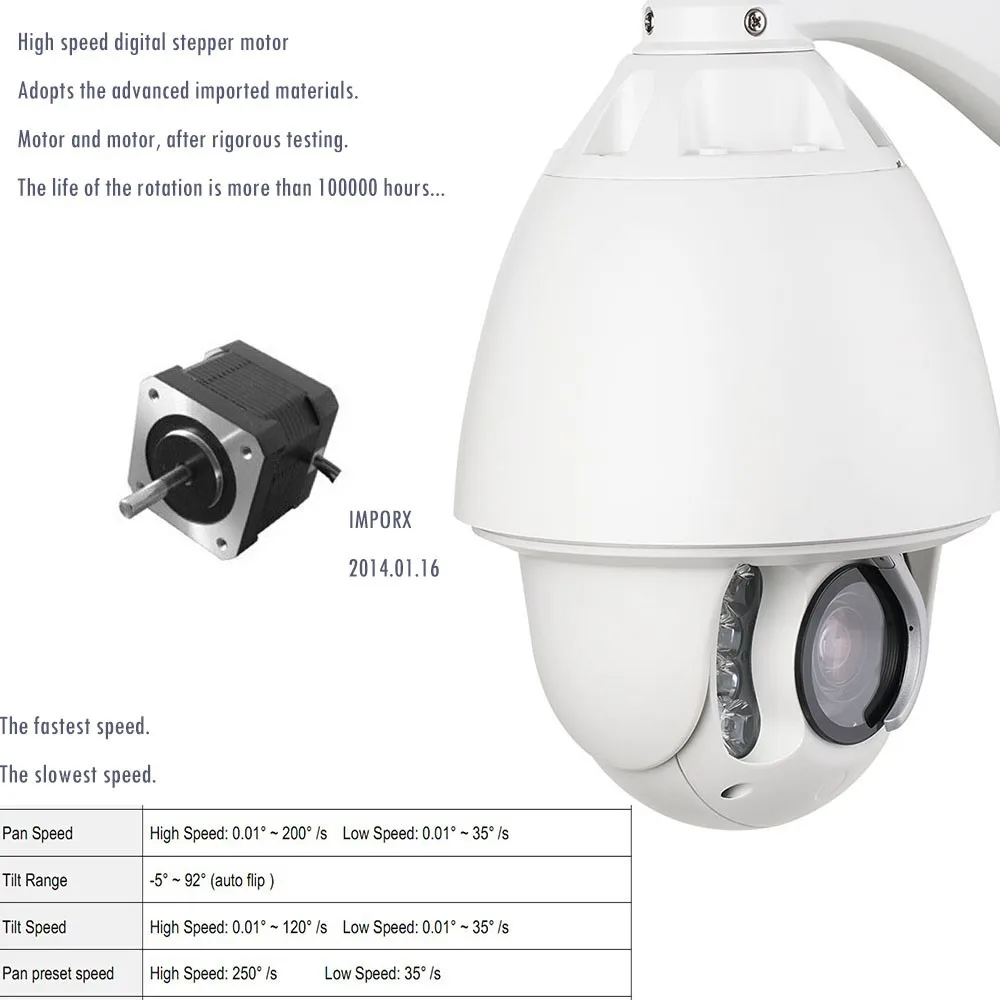

*10. Built-in high speed motor. This high-speed motor is very responsive, very efficient, and very fast to the picture you want to see.
*11.Lightning protection and High quality aluminum alloy. Built-in lightning protection device, thunderstorm weather, don't worry about camera damage.
*12.P2P, IR Night Vision, IP66, ONVIF, Motion Detection and other basic functions!
